XR1™ Bicycle Rack

Clear

Share

Share on facebook
Share on whatsapp
Share on twitter
Share on email

1. How to choose your bike rack

Manufatured in the USA

2. Select your mounting option

SURFACE MOUNT

IN GROUND

RAIL MOUNT

3. Select your finish

POWDER COAT

Our most popular finish is Powder Coated, we use a high quality TGIC Polyester Powder Coating with eight standard colors available at no extra charge. Want a color you don’t see here? For an added fee we can access every color you could imagine. Looking for added protection? We offer an Anti-Graffiti top coat (extra fee) which resists sharpie and most aerosol paints allowing maintenance to be performed with dish soap and water

GALVANIZED

Hot-dip Galvanized (G) racks will have the highest durability.

STAINLESS STEEL​

Looking for the highest longevity? Stainless Steel (S) Racks will literally last beyond a lifetime requiring the least amount of labor to maintain

2. Select your color

  • BLACK
  • PEARL
  • WHITE
  • SILVER GRAY
    GRAPHITE
  • MESA TAN
  • FIRE ENGINE RED
  • EMERALD GREEN
  • CELESTIAL BLUE​

5. Plan accordingly

When planning for your bike rack spacing, make sure you account for the bike! Bikes are 24″W x 72″L x 48″H and are often times unaccounted for. If you are in need of layout assistance, CONTACT US TODAY!

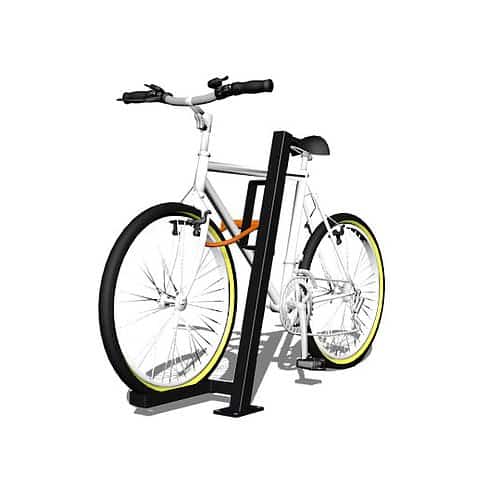

The XR1™ Bike Rack is one of the country’s leading bicycle friendly racks on the market. The slightly elevated wheel trough setting prevents any debris build up while maintaining the bicycle in a full upright position. The XR1™ comes in our environmental friendly TEC72™ thermo finish, which protects against metal to metal contact. We also offer the unit in a standard powder coat. This unique design secures one bicycle in an organized and upright position while allowing the user to secure both their tire and frame to the rack. The theft resistant metal square tubing features two solid steel locking loops that provide three critical U-lock points – the frame, front wheel and the bike rack. The base is fit with one-wheel trough, which holds the front or rear wheel firmly in place and keeps the bikes in an organized upright position. The XR1™ Bike Rack is in a class of its own, preventing tipping and slipping, metal to metal contact, and increasing rider security.

  • MATERIALS

    • ASTM A53 2” Square Tube
    • ASTM A36 Steel Plate
    • 3/8:” Case Hardened Steel Locking Loop
    • 3/8” Case Hardened Wheel Trough
    • Tec72 Thermoplastic Finish



    FOOTPRINT

    • Without Bikes: “15.5 W x ”38 H x “18 L
    • With Bikes: “24 W x ”38 H x “72 L



    MOUNTING

    • Surface Mount
    • In Ground



    FINISH

    Tec72™ Thermoplastic Finish



    WARRANTY

    • 5 Year Manufacturer Warranty

Distance between racks:

  • Center to center – Minimum 16” Recommended 18”
  • Perpendicular – Minimum 24” diagonal



Front of rack to wall setback:

  • Wall to center of rack – Minimum 20”
  • 30° Perpendicular to center of rack – Minimum 18”



Racks parallel to a side wall:

  • Minimum 30” from center base plate

Street setbacks Parallel to street:

  • Racks parallel to curb – minimum: 45”

Additional information

Color

Black, Blue, Celestial Blue, Emerald Green, Fire Engine Red, Graphite, Green, Grey, Mesa Tan, Pearl White, Red, Silver Gray

Material

Galvanized (Added Cost), Powder Coat (Standard), Stainless Steel (Added Cost)

Anchor Kit

Anchor Kit, No Anchor Kit

Mounting

In Ground Mount, Surface Mount

Installation

No, Yes
